VB-127 / 147 / 157 / 168 / 178 / 208 Box Way Series of Heavy Duty CNC Machine by Shinzawa
VB-127 / 147 / 157 / 168 / 178 / 208 Box Way Series of Heavy Duty CNC Machine by Shinzawa
VB-127 / 147 / 157 / 168 / 178 / 208 Box Way Series of Heavy Duty CNC Machine by Shinzawa
VB-127 / 147 / 157 / 168 / 178 / 208 Box Way Series of Heavy Duty CNC Machine by Shinzawa

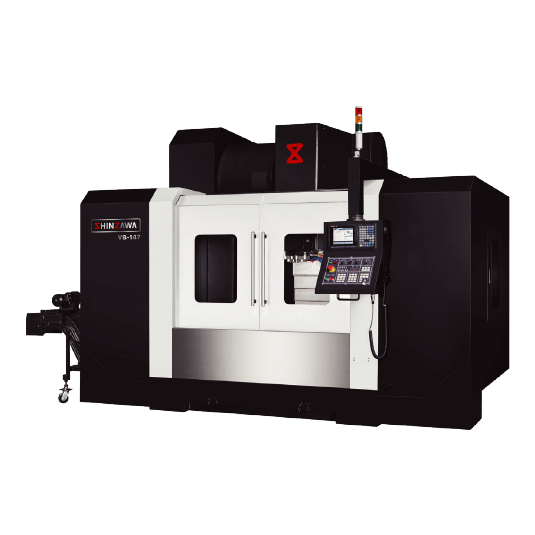

Box Way Heavy Duty CNC Machine
Suitable for heavy-duty cutting, the high-rigidity hard rail design and scraping technology present the ultimate heavy-duty cutting processing capability. The hightorque spindle and large-diameter screw are combined with a three-axis hard rail design to meet the needs of difficult-to-cut materials and heavy-duty cutting capabilities.
Features

Rigid design high precision machine frame structure

  • High strength machine frame, all casting, 100% Taiwan-made.
  • Box type guide-ways reinforces working performance and greatly reduces tooling wear-out.
  • Delicate scraping, all 3 axes equip C3 class ball screw.
  • All of 3 axes by direct-drive design.
  • All of the series by oil-coolant spindle.
  • Z axis equipping with a counterbalance weight secures its travel perfectly stabilized & smoothened in the rapid speed.
  • Main spindle available with the option of BT-40 and BT-50.
  • Sizable for the regular dry container packing reduce the delivery cost.
Technology

Technology

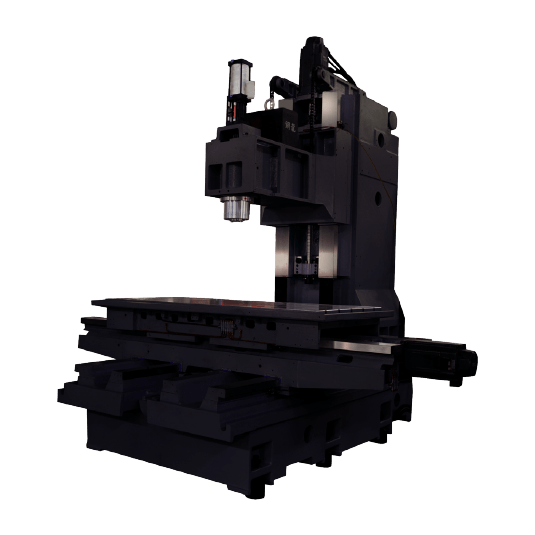

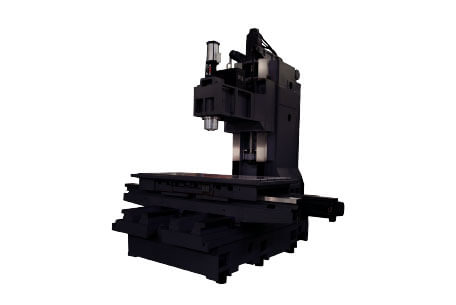

Column Saddle Adopts Box Design
Column Saddle Adopts Box Design
  • Wide and thick base design, box-design column, widened and lengthened saddle for heavy loads. The load is fully supported and the structure is solid, which can ensure the heavy load capacity during processing.

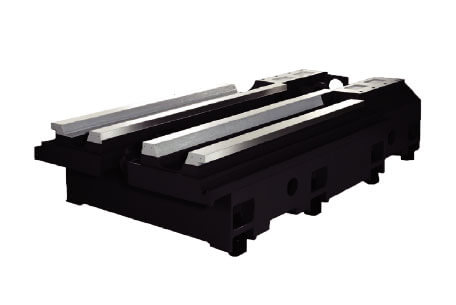

Four-Axis Hard Rail Base Design
Four-Axis Hard Rail Base Design
  • Enhanced machining stability and reduced tool wear. The highrigidity hard rail design and scraping technology present the ultimate heavy-duty cutting processing capability.

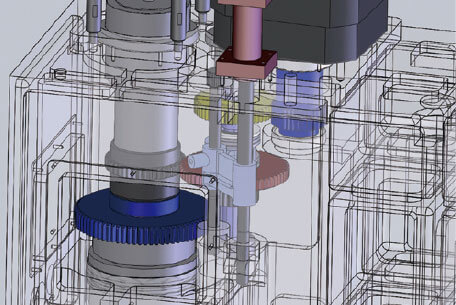

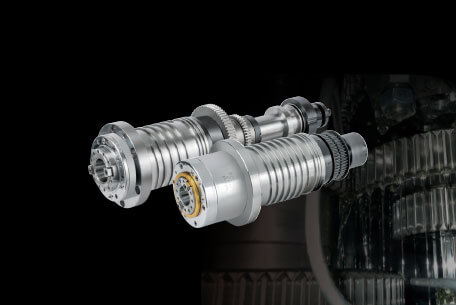

Belt / Gear Type Available
Belt / Gear Type Available
  • The reinforced rib structure of the spindle head is designed, and the proportion of the head and the column is appropriate to provide stable support for the spindle.

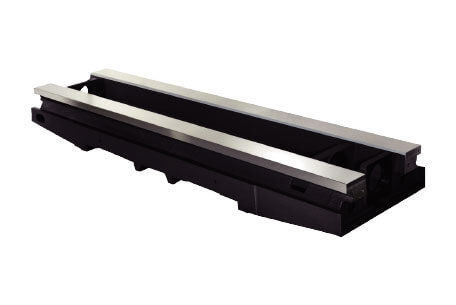

Three-Axis Hard Rail Design
Three-Axis Hard Rail Design
  • It can support heavy loads and ensure positioning accuracy during movement.
Perfect & Strict Precision Inspection
Perfect & Strict Precision Inspection
  • Perfect & Strict Precision Inspection to Ensure the Best Quality

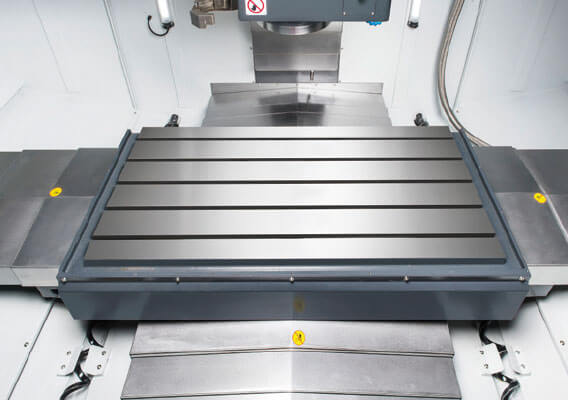

Capability

Capability

Y-axis left and right chip conveyor (optional)

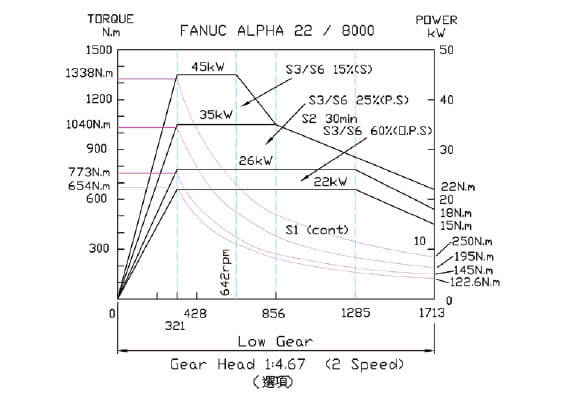

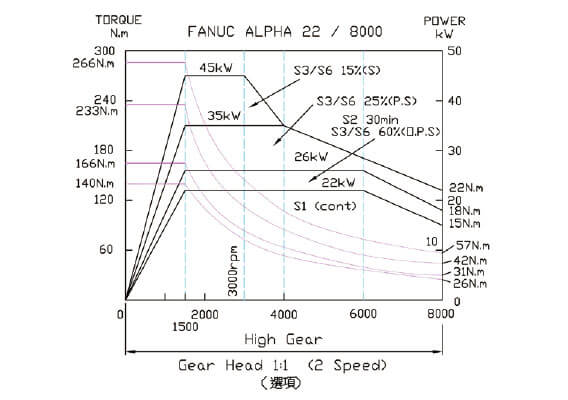

Spindle motor diagram (Options)

Spindle motor diagram (Options)
Specifications

Specifications

Item  Unit  VB-127 VB-147 VB-157
X / Y / Z axes travel  mm  1200 x 720 x 610 (BT-40)
1200 x 720 x 680 (BT-50)		 1400 x 720 x 610 (BT-40)
1400 x 720 x 680 (BT-50)		 1500 x 720 x 610 (BT-40)
1500 x 720 x 680 (BT-50)
Table size mm 1350 x 700 1550 x 700
Max. loading capacity kg 1400 1500
Spindle speed  rpm  7.5 / 11 (BT-40 Belt Type) / 15 / 18.5 (BT-50 Gear Type)
Spindle motor kW 10000 6000 10000 6000 10000 6000
Spindle taper  - BT-40 BT-50 BT-40 BT-50 BT-40 BT-50
Tool capacity Pcs 24T
Rapid traverse speed m / min 15 / 15 / 12
Net weight kg  9700 10200 10000 10500 11000 12000

Item  Unit  VB-158 VB-178 VB-208
X / Y / Z axes travel  mm  1500 x 850 x 750 1700 x 850 x 750 2000 x 850 x 750
Table size mm 1700 x 700 1900 x 800 2100 x 800
Max. loading capacity kg 1800 2200 2400
Spindle speed  rpm  7.5 / 11 (BT-40 Belt Type) / 15 / 18.5 (BT-50 Gear Type)
Spindle motor kW 10000 6000 10000 6000 10000 6000
Spindle taper - BT-40 BT-50 BT-40 BT-50 BT-40 BT-50
Tool capacity Pcs 24T
X / Y / Z Rapid Feedrate  m / min 15 / 15 / 12
Net weight kg  13000 14000 15000
We reserve the right to modify the design and specifications without notice in advance.
