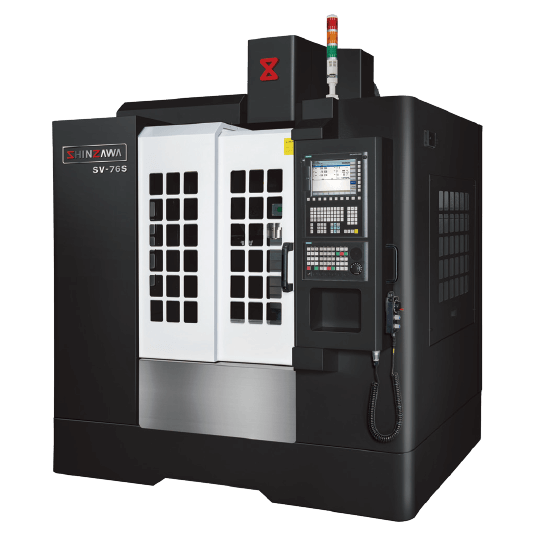

Shinzawa Brand of SV-50S / 65S / 76S 3 Axis VMC Machine
Shinzawa Brand of SV-50S / 65S / 76S 3 Axis VMC Machine
Shinzawa Brand of SV-50S / 65S / 76S 3 Axis VMC Machine
Shinzawa Brand of SV-50S / 65S / 76S 3 Axis VMC Machine

Linear Guideway CNC Machine
The V-shaped rib base design has high rigidity and highprecision structural design. The new generation of small 3 axis VMC machine SV-76S occupies a small space and meets the market demand for high processing efficiency. The three-axis adopts precision linear slide rail design, and the X-axis stroke is 500 / 650 / 760 mm, which saves space and is more productive.
Features

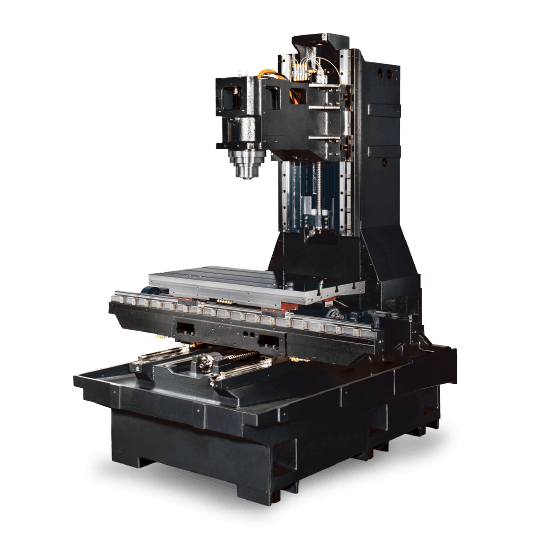

Perfect structural rigidity

  • The stable low gravity machine base offers a solid foundation for the entire VMC machine. The V-shaped inner ribs provide long lasting dynamic and static accuracy.
  • Extra wide span between linear ways exhibits exceptional stability to absorb cutting vibration; free from overhang problems.
  • All structural parts are manufactured from high tensile FC-300 cast iron, stress relieved and deformation free.
  • The box type construction features anti-deformation and anti-bending.
  • The A-shaped machine column firmly supports the ATC unit and head stock. The design is capable of dealing with cutting force from axial and radial directions.
Technology

Technology

Tough Casting Structure
Tough Casting Structure
  • Structural castings are made of tough cast iron, which is stress-relieved to present a stable structure; the castings are designed with a box structure, which is highly resistant to bending and twisting.
Extra-Large Track Spacing Design
Extra-Large Track Spacing Design
  • Effectively disperses the cutting force, prevents the saddle from overhanging, and maintains excellent dynamic accuracy. The three-axis transmission system adopts the design of direct transmission and pretensioning mechanism.
A-Shaped Column Design
A-Shaped Column Design
  • FEA analysis effectively distributes the weight of the tool magazine and the axial and radial force of the head cutting.
Stable Low Center Gravity Base
Stable Low Center Gravity Base
  • It provides stable support for the whole machine, and the V-shaped rib structure design provides the best dynamic and static precision performance of the whole machine.
High-Speed and Stable Features
High-Speed and Stable Features
  • Focuses on the Design of the Structure To Ensure the Best Dynamic and Static Stability
Cutting Capability

Cutting Capability

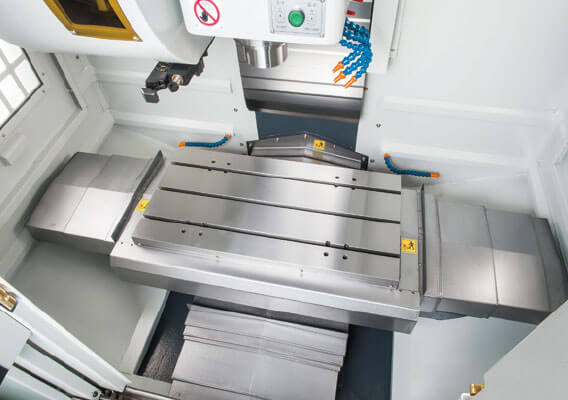

Spacious interior

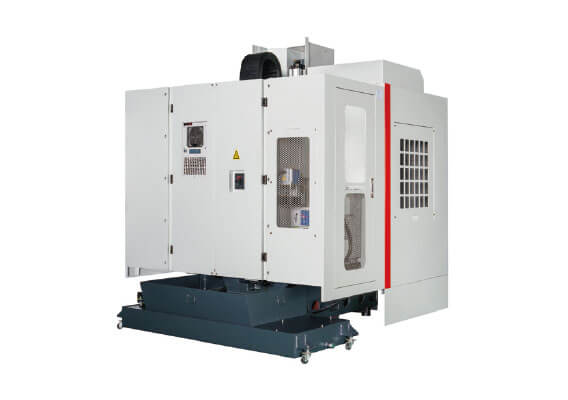

Hidden air pressure element

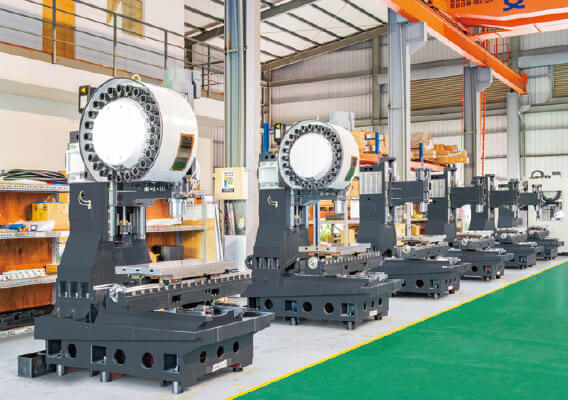

Proven production line
Specifications

Specifications

Item  Unit  SV-50S  SV-65S  SV-76S
X / Y / Z axes travel mm 500 x 430 x 420 650 x 430 x 420 760 x 430 x 450
Table size mm 700 x 400 750 x 400 860 x 420
Max. loading capacity  kg  250 300
Spindle speed  rpm 12000
Spindle motor kW 5.5 / 7.5
Spindle taper  - BT-40
Tool capacity Pcs 24T
X / Y / Z Rapid Feedrate m / min 48 / 48 / 48(M) / 36 / 36 / 36(F)
Net weight kg 2950 3200 3700
We reserve the right to modify the design and specifications without notice in advance.
Equipment
Standard Equipment
  • Rigid tapping
  • Spindle air blast device
  • Fully enclosed splash guard
  • Heat exchange for electrical cabinet
  • Automatic lubrication system
  • Spindle cooling system
  • Cooling system and coolant tank
  • Work lamp
  • Foundation bolts and blocks
  • Tool box with tools
  • Operation and maintenance manual
  • Coolant flushing device
  • Flush gun
Optional Equipment
  • 15,000rpm direct-drive spindle
  • 24,000/30,000/36,000rpm built-in spindle
  • Y axis rear side chip conveyor
  • Y axis rear side screw type chip conveyor
  • 4th axis rotary table
  • Transformer
  • Air conditioner for electrical cabinet
  • Coolant through spindle
  • Tool length measurement
