Shinzawa Brand of S56-MT Moving Column Machining Center
Shinzawa Brand of S56-MT Moving Column Machining Center
Shinzawa Brand of S56-MT Moving Column Machining Center
Shinzawa Brand of S56-MT Moving Column Machining Center

Moving Column Machining Center

Adopting the design concept of three-axis moving column horizontal structure, the double-station design allows A work area to process; B work area to load and unload parts. When the AB plate is exchanged, the worktable does not need to be lifted, which is beneficial to the production of any jig and saves processing time.

It is suitable for processing of a large number or small amounts of various parts.

Features

Traveling column structural design, features of outstanding structure

  • The machine is made of high quality cast iron of FC-300, with the Finite Element Analysis to inject the mechanical as well as aesthetic factors for the maximum rigidity and flexibility.
  • Referring the structural concept of horizontal machine base, the lift-up design allows high speed and smooth motion control for the moving parts on the machine base and table.
  • 3 axes employ high rigidity roller linear guideways for outstanding machining rigidity.
Technology

Technology

Force Flow and Aesthetic Design
Force Flow and Aesthetic Design
  • The whole machine is cast with FC-300 material, injecting force flow and aesthetically designed structure thru FEA analysis, it is a moving body with high rigidity and sensitivity.
Horizontal Structure Elevation Design
Horizontal Structure Elevation Design
  • The base is designed with a horizontal structure to reduce the weight of the moving parts. Combined with the highrigidity and digital design, it delivers the high-speed displacement without shaking.
Independent Installation of Tool Magazine
Independent Installation of Tool Magazine
  • The independent installation of the tool magazine and the design of the protective door make the tool magazine completely isolated from the processing area. It can not only avoid the pollution of cutting chips or cutting fluid, but also make maintenance more convenient.
High Rigidity Linear Guideway
High Rigidity Linear Guideway
  • All three axes use high-rigidity roller rails, which can better demonstrate the rigidity of the machine tool.

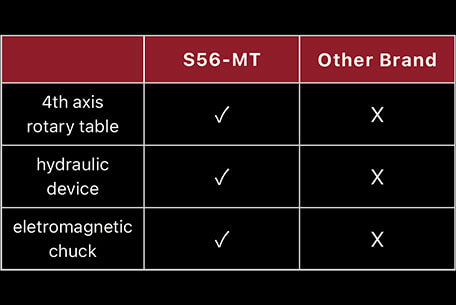

  • V : Installable
  • X : Not installable
High-Efficiency Worktable with Automatic Exchange Mechanism
High-Efficiency Worktable with Automatic Exchange Mechanism
  • It Is Your Best Helper for Mass Production
Capability

Capability

Compact interior

APC machine with three-plate clutch

Proven production line
Specifications

Specifications

Item  Unit  S56-MT
X / Y / Z axes travel  mm  560 x 400 x 400
Table size mm 650 x 405 (two pallets)
Max. loading capacity kg 200 x 2 pcs
Spindle speed rpm 12000
Spindle motor kW   5.5 / 7.5
Spindle taper  - BT-40
Tool capacity Pcs 24T
X/Y/Z Rapid Feedrate m / min  30 / 30 / 30
Net weight kg  5500
