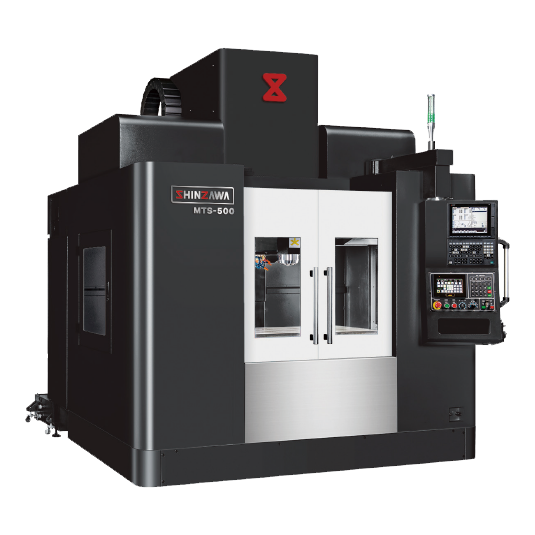

Shinzawa Brand of MTS-500 Double Spindle CNC Lathe
Shinzawa Brand of MTS-500 Double Spindle CNC Lathe
Shinzawa Brand of MTS-500 Double Spindle CNC Lathe
Shinzawa Brand of MTS-500 Double Spindle CNC Lathe

CNC Double Spindle Lathe Machine

Innovative design, doubled efficiency and independently tool length compensation for dual spindles.

The design of the overall structure is through FEA analysis, and the cast iron adopted is of high-quality FC300 grade, featuring with high rigidity and least transformation.

The combination of dual spindle and dual ATC makes the efficiency doubled and makes the space requirement less, achieving the energy-saving and less carbon-consuming purpose.

The machining performance and superb loading capacity lies in the 3-axis linear guideway, of #45 heavy-duty roller type.

The intuitive human-friendly interface can real-time be monitoring the status of the spindle and ATC. Furthermore, the real-time cutting monitoring, the display of break-down location, the operation description, and more are optionally available.

Technology

Technology

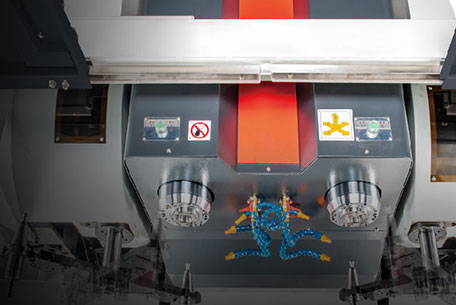

Spindle Heads Cross Large Span
Spindle Heads Cross Large Span

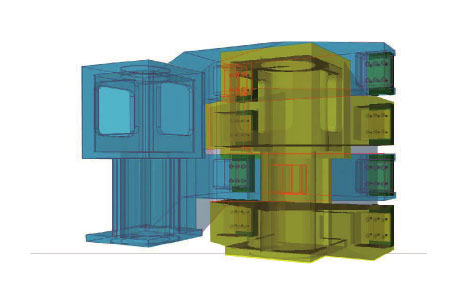

  • The cross-patent design of the spindle head realizes the ultra-large column rail space and increases the geometrical precision of the structure.
Horizontal Structure Elevation Design

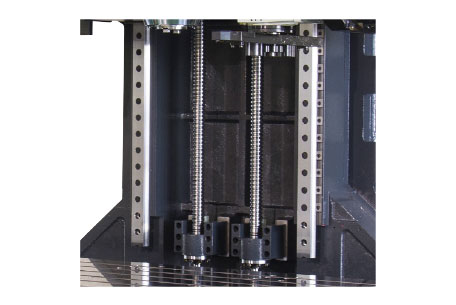

Three-Axis Roller Linear Guideway
  • The super large rail space can effectively disperse the cutting force, no saddle hanging phenomenon, and good dynamic accuracy.

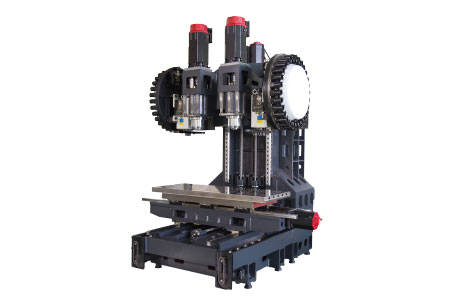

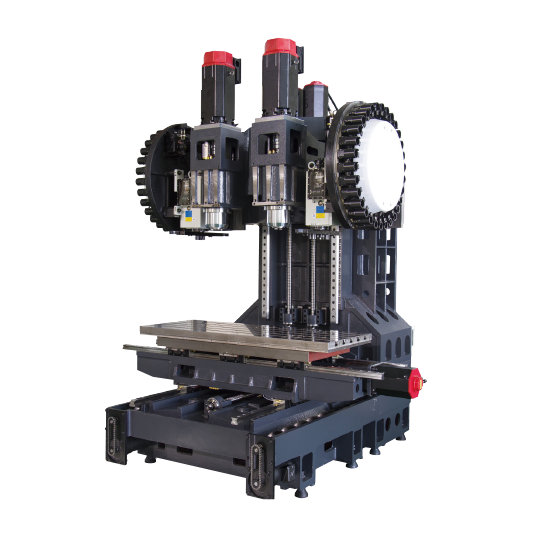

Double Magazine Design
Double Magazine Design
  • The double-spindle/doubletool magazine design reduces investment and labor costs. The spindle (D.D.S) speed has an option of 12000/15000 rpm. The tool arm type fast drive mechanism (T-T) completes in 1.5 sec.
Real-Time Monitoring Function
Real-Time Monitoring Function

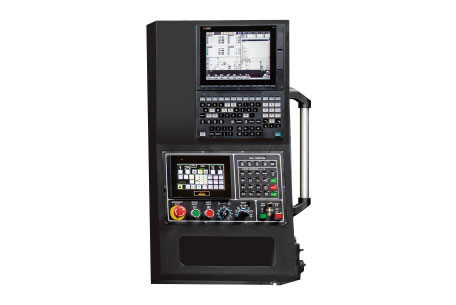

  • Equipped with a second screen, the dual-spindle tool change process monitoring can be seen at a glance.
  • Optional functions: fault location display, reading operation manual, optional (CCD) monitoring function, high expandability suitable for flexible processing systems.
Stable and Low Center of Gravity
Stable and Low Center of Gravity
  • Base Support for the Whole Machine V-Shaped Rib Structure Design
  • The Best Dynamic and Static Precision Performance of the Whole Dual Spindle CNC Lathe
Capability

Capability

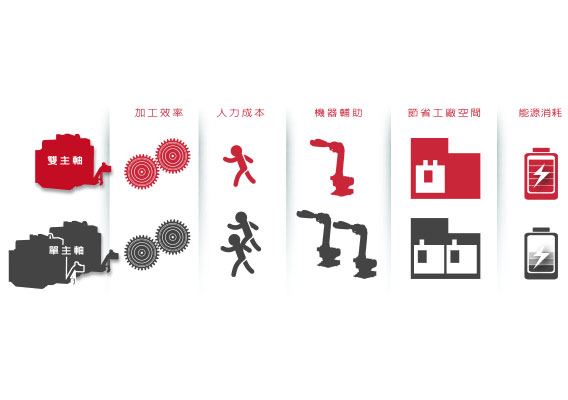

Double benefit and efficiency
Specifications

Specifications

Item Unit MTS-500
X / Y / Z axes travel mm  500 x 600 x 570
Table size mm 1500 x 600
Max. loading capacity kg 700
Spindle speed rpm 10000
Spindle motor kW   7.5 / 11
Spindle taper - BT-40
Tool capacity Pcs 24T (30T)
X / Y / Z Rapid Feedrate m / min  36 / 36 / 30
Net weight kg 8400
